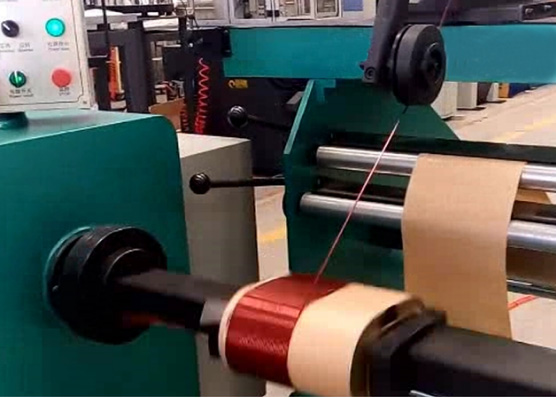

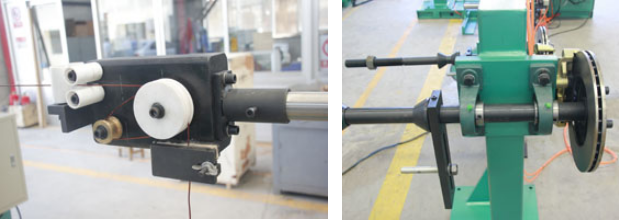

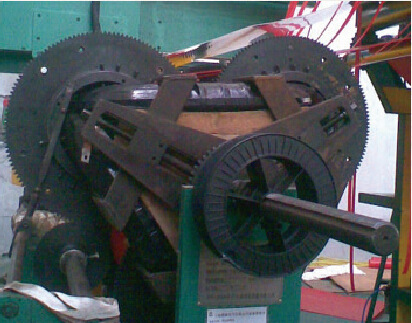

Automatic HV transformer coil winding machine

Usage:

It is widely used in distribution transformer (oil immersed transformer, dry transformer,amorphous alloy transformer) ,reactor and similar process of HV coil winding.

Technical data:

Model	GRX-100	GRX-800
General
Dimension L×W×H	1400×2000×1300mm	2550×2180×1980mm
Winding width	500 mm	800mm
Weight	500kg	1000kg
Power supply	3×220(380)(415)V 50(60)HZ	3×220(380)(415)V 50(60)HZ
Coil
Coil diameter	80-400mm	80-600mm
Coil width (Max)	500mm	800mm
Coil weight(Max)	100kg	300kg
No.of coils wound simultaneously	1 or 2	1 or 2
Coil cross section	Round,oval,rectangle	Round,oval,rectangle
conductors
Round wire diameter	Φ0.3mm—Φ3mm	Φ0.3mm—Φ3mm
Flat wire	1×9mm	3×12mm
Mandrel
Speed adjustment method	Frequency stepless control	Frequency stepless control
Mandrel rotation speed (Max)	450rpm	450rpm
Mandrel torque	100Nm	100Nm
