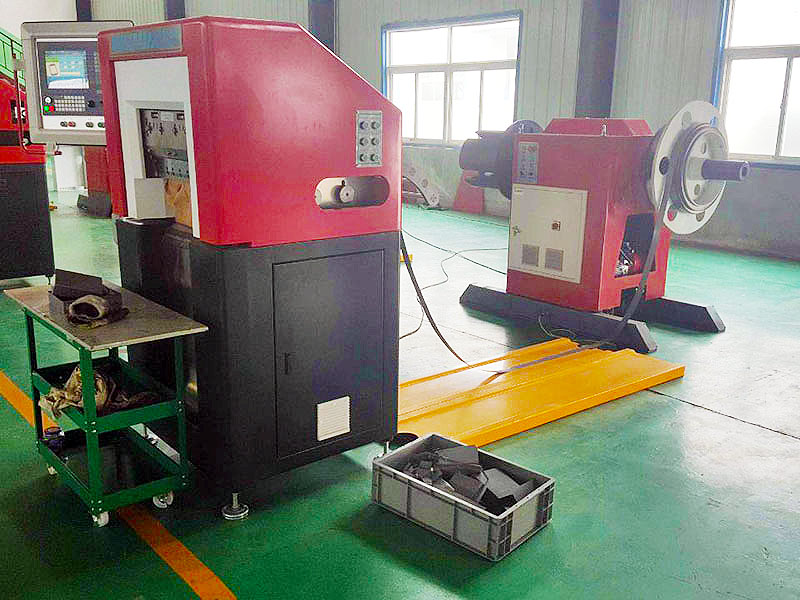

AEM UCM300 Unicore Machine Compared KN400 Unicore Machine

1.AEM UCM300 Unicore Machine The maximum cutting width is 300MM, and the KN 400 Unicore Machine is 410MM, which will make the processing range wider and the corresponding transformer core larger.

2. The price of the AEM UCM 300 Unicore Machine is also higher than the KN 400 Unicore Machine.

3. AEM UCM300 Unicore Machine uses very good accessories, KN 400 Unicore Machine uses time-known accessories, Germany Rexroth CNC system, France Schneider Electric accessories, Swedish rail, US SEW and so on.

4.KN 400 Unicore Machine performance comparable to AEM UCM 425 Unicore Machine

Main technical data of Unicore distributed gap wound core cutting machine:

No.	Item	Data
1	Max. single silicon steel strip width	410mm
2	Max. Double silicon steel strip width	190mm
3	Bending speed	300ms per bend
4	Cutting speed	300ms per cut
5	Production speed (@perimeter 2m)	6 seconds
6	Productivity (@ 8 hours per shift)	1500kg
7	Length precision	0~0.1mm @length <1m; 0.1~0.2mm @length >1m
8	Gap core increment	0.1mm
9	Bend degree	30°, 45°
9	Servo motor power	3kW x 3
10	Decoiler driving motor power	3kW, inverter control
11	Hydraulic pump motor power (hydraulic station)	2.2kW
12	Decoiler capacity	Max. 1000kg
13	Total machine weight	About 2500kg
14	Main machine dimension	About 1000 x 1000 x 1800mm
15	Decoiler dimension	About 1500 x 1000 x 1400mm
16	Air source	0.8MPa




1. Can produce a variety of small medium and large transformer core
2. Can produce single-phase, three-phase, three-dimensional transformer core
3. Can produce dry, oil-immersed transformer core
4. Core processing of high dimensional accuracy, simple operation and convenient
5. Machinable single, can also be processed at the same time with two silicon steel strip
6. Bending, cutting servo CNC system
7. Machine interface using human-computer interaction, intuitive and simple
8. The machine tool industry for the first time the CNC system into the transformer, the equipment as a whole high precision, good stability
9. Equipment can process the curve, the line can be produced with R-shaped silicon steel, oval, three-dimensional triangular transformer open core
10. Equipment processing core can be used to manufacture oil-immersed, dry, traction, rectifier, grounding transformers and special transformers, reactors, transformers and other products.
