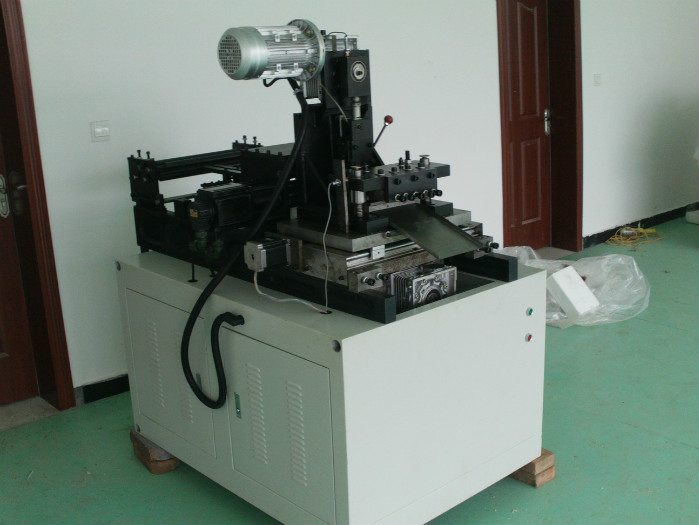

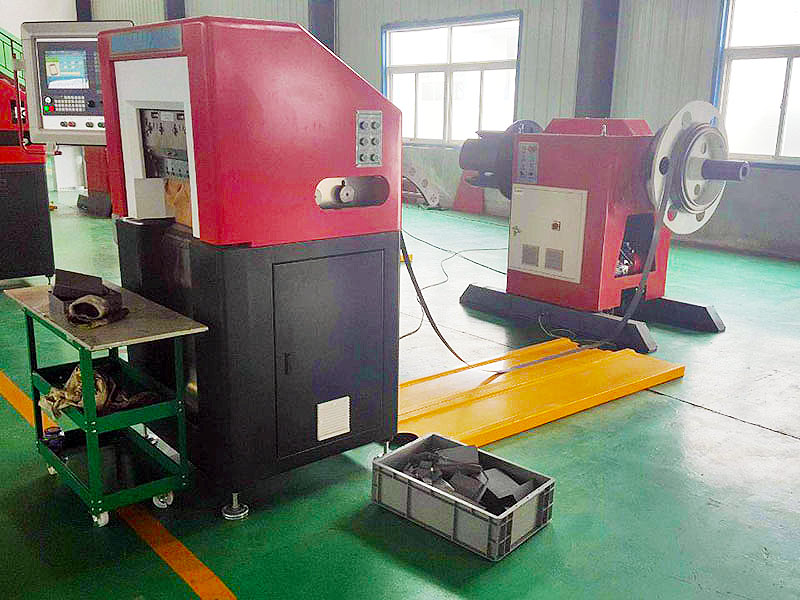

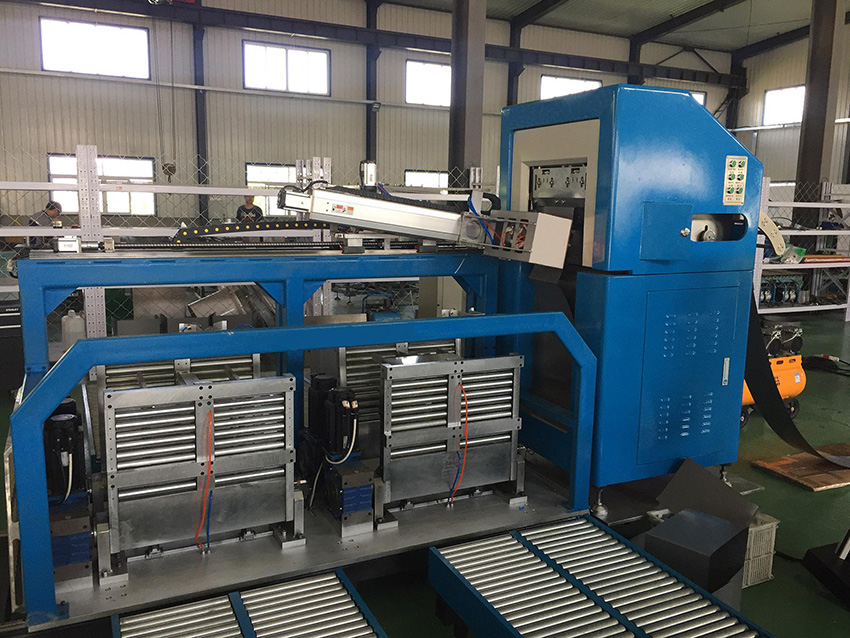

Distributed Gap (DG) Cores cutting machine similar AEM unicore machine

 Full automatic Distributed Gap (DG) Cores,DG core cutting machine similar to Unicore from China:
(Distributed Gap (DG) Cores,DG coreDistributed Gap (DG) Cores,DG core cutting machine,Distributed Gap (DG) Cores,DG core forming machine)
This machine is developed by ourselves, designed for cutting distributed gap cores in single phase or three phase distribution transformers and instrument transformers 500kVA ~ 5000kVA.
It has flexible software similar to  AEM UCM 425 Unicore machines, for different wound gap cores:
II Main features of Unicore distributed gap wound core cutting machine
 - Suitable for both single strip or double strips feeding
- PLC control, HMI operation
- Servo feeding, bending & cutting, high precision, high speed
- Compact structure, small occupation area

III Main technical data of Unicore distributed gap wound core cutting machine:

No.	Item	Data
1	Max. single silicon steel strip width	410mm
2	Max. Double silicon steel strip width	190mm
3	Bending speed	300ms per bend
4	Cutting speed	300ms per cut
5	Production speed (@perimeter 2m)	6 seconds
6	Productivity (@ 8 hours per shift)	1500kg
7	Length precision	0~0.1mm @length <1m; 0.1~0.2mm @length >1m
8	Gap core increment	0.1mm
9	Bend degree	30°, 45°
9	Servo motor power	3kW x 3

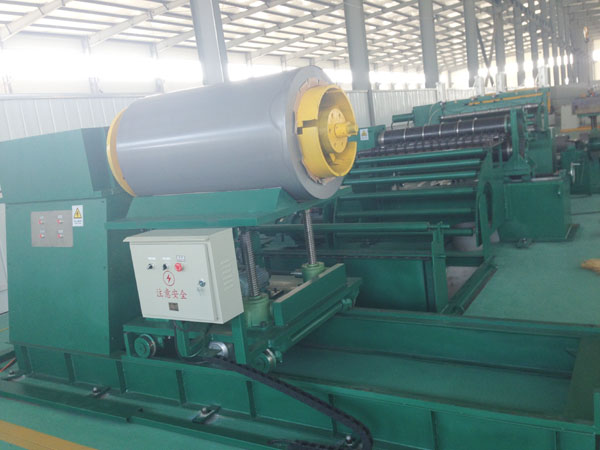

10	Decoiler driving motor power	3kW, inverter control
11	Hydraulic pump motor power (hydraulic station)	2.2kW
12	Decoiler capacity	Max. 1000kg
13	Total machine weight	About 2500kg
14	Main machine dimension	About 1000 x 1000 x 1800mm
15	Decoiler dimension	About 1500 x 1000 x 1400mm
16	Air source	0.8MPa
