NC Straight cutting and punching machine




Product

NC Straight cutting and punching machine

Model

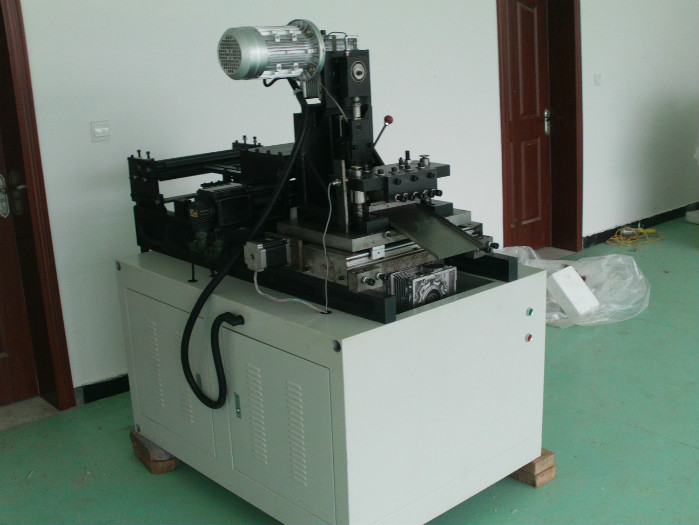

HJ-3002S NC Straight cutting and punching machine
Model:HJ-2002/3002/5002-S


Introduction and Usage
This machine is mainly used for straight cutting&punching
silicon steel lamination for transformer or reactors automatically.
Cut the silicon steel to be kinds of shape,such as right angle,bevel angle,
Straight angle& bevel angle,punched,punched V shape etc.
This machine also has step-lap function.


Specification
Cutting length:1-99999mm
Cut-to-length precision:+-0.02mm
Cutting angle precision:Max 0.025degree
Cutting burr height:Max0.02mm
Punching burr height:Max0.03mm
Punching hole numbers:1-12
Cutting speed:1-140 pieces per minute

Characteristics
1.Cutting power:adopts domestic famous brand inverter motor,high speed,low noise,long life.
2.Feeding power:adopts big torque AC servo motor,quick response,high precious positioning,low
noise,small thermal braking,long life.
3.Rail positioning:step motor dring,ball screw&linear guide transmitting,central positioning,
quick and precious.
4.Motion control:by advanced PLC,HMI operation,simple and convenient.
5.Lamination collecting:transmitting bell plus unloading rack.
6.Life assurance:Imported world famous linear guide and ball screw,high precious milling parts
and high precision assembly,extend life of the machine.
